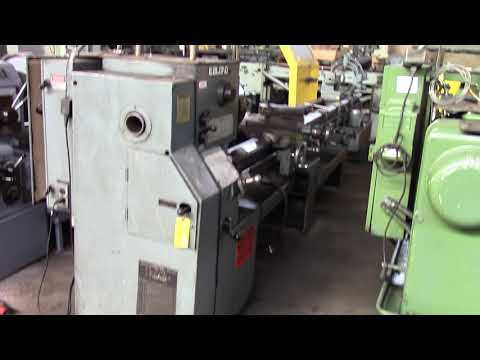

19" x 150" LEBLOND MAKINO "19" REGAL" SERVO-SHIFT ENGINE LATHE w/TAPER & NEWALL DP700 DRO

19" x 150" LEBLOND "REGAL" SERVO-SHIFT ENGINE

 LATHE W/TAPER DIGITAL READOUTS INCH/METRIC

Serial No. 12E237, Model 19" Servo-Shift

EQUIPPED WITH:

Taper Attachment

Newall DP700 Digital Readouts

12" 3-Jaw Chuck

(3) Steady Rests

Servo Shift Hydraulic Shifting

Inch-Metric Threading Dials On Compound & Cross Slide

Hard Ways - Threading Dial

Chip Pan

CATALOG SPECIFICATIONS:

Swing Over Bed Ways, Rated 19"

Swing Over Bed Ways, Actual 19-1/4"

Swing Over Cross-Slide 12-1/4"

Distance Between Centers 150"

Hole Thru Spindle 3 1/16"

Spindle Nose L-2

(12) Spindle Speeds, Range 40 to 1600 RPM

(48) Longitudinal Carriage Feeds .0018 to .104 IPR

(48) Thread Changes, Range 2 to 112 TPI

(40) Metric Thread Changes, Range .25 to 14 MMPR

Cross-Slide Cross Feed 11-1/4"

Tailstock, Spindle Taper #4 MT

Tailstock, Spindle Diameter 2-7/16"

Tailstock, Spindle Travel 7"

Motor, Horsepower 10 HP

Overall Dimensions, L x D 217" x 50"

F.O.B. OUR WAREHOUSE
