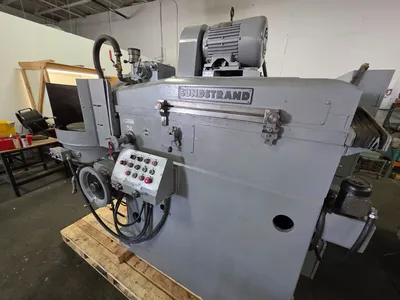

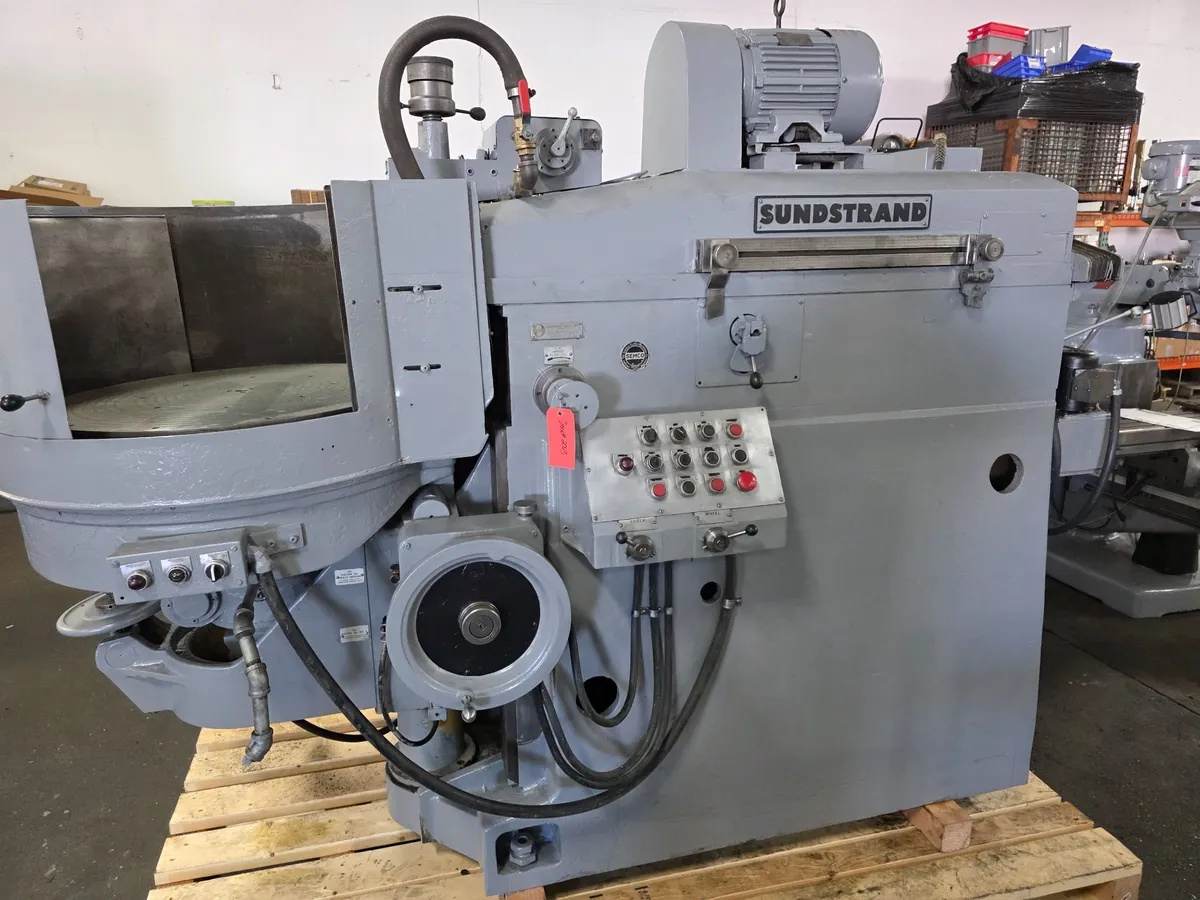

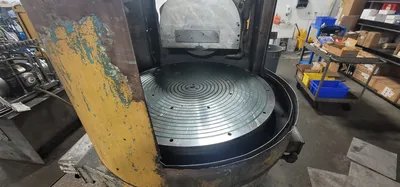

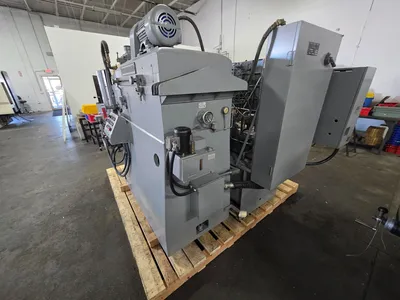

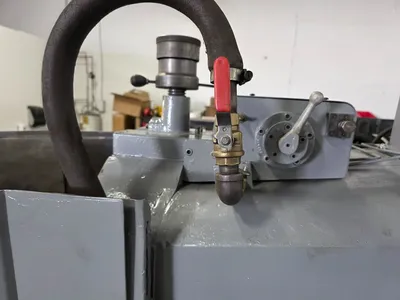

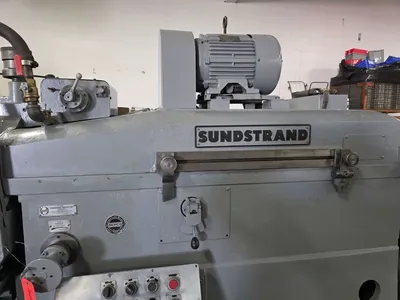

Sundstrand-Arter H30 Rotary Surface Grinder

Sundstrand-Arter H30 Rotary Surface Grinder
s/n 44-26

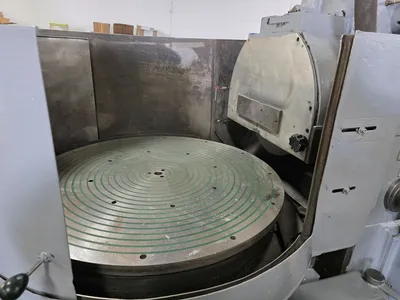

Capacity:

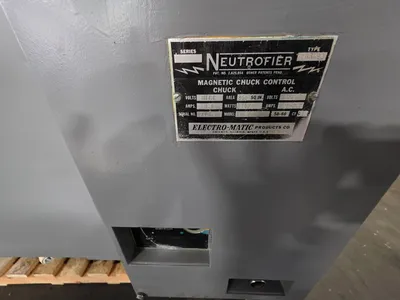

Magnetic Chuck-Nominal Diameter: 30”
Magnetic Chuck-Actual Face Dia: 31”
Magnetic Chuck-Pilot Hole: 1”
Swing-Max, In Water Pan: 34”
Work Height-Max, With New Wheel: 10”
Wheel Collet Flange Dia.: 10 ½”
Standard Wheel Size: 16” x 2” x 8”
Wheelhead Stroke-Max: 17”
Knee-Max, Vertical Travel: 12”
Angular Tilt- Convex: 10 Degrees
Angular Tilt- Concave: 10 Degrees

Speeds & Feeds:
Wheelhead Spindle RPM: 1400
Wheelhead Traverse (Inf. Adjustable): 0-10 FPM
Table Speed- Adjustable: 30-125 RPM
Feed Handwheel-One Revolution: .020”
Feed Handwheel-Finest Division: .0001”
Power Feed- Adjustable: .0001”-.0015”
Table Slide Power Positioning: 6 IPM

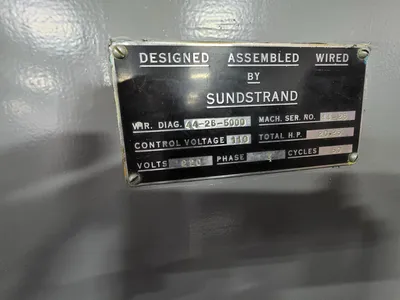

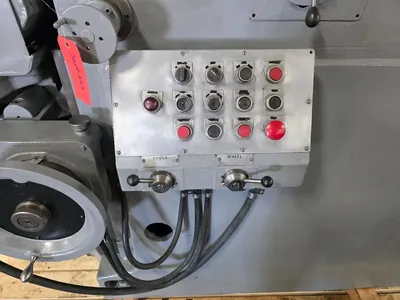

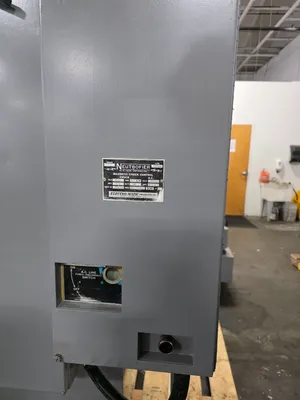

Electrical Data:
Standard Controls-All EGP-1967-1: 460V-60HZ-3 Phase

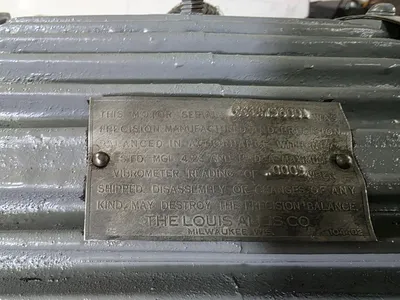

Wheelhead Spindle Motor (STD.): 20HP/1800 RPM
Hydraulic Pump Motor (J.I.C.): 10HP/1800 RPM

General Data:
Coolant Reservoir-Gallons: 45
Hydraulic Reservoir-Gallons (J.I.C.): 80
Dimensions: 106” x 48” x 87”
Machine Weight- Net: 12,600 lbs

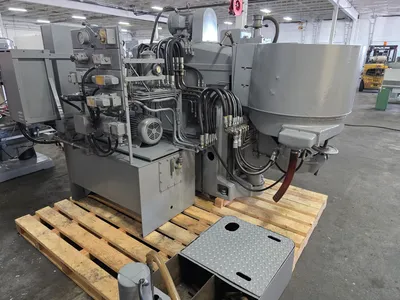

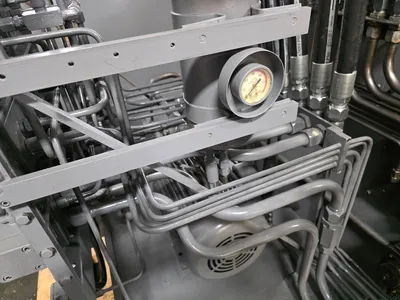

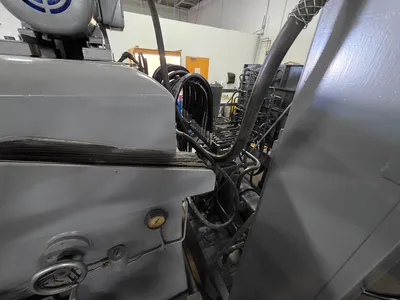

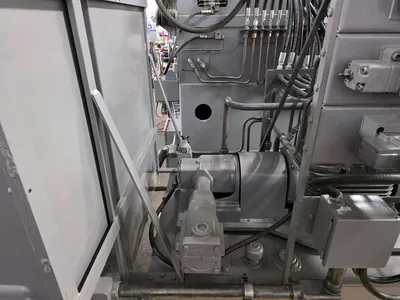

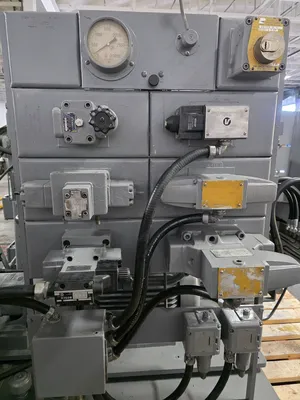

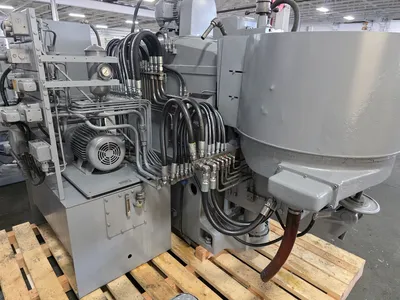

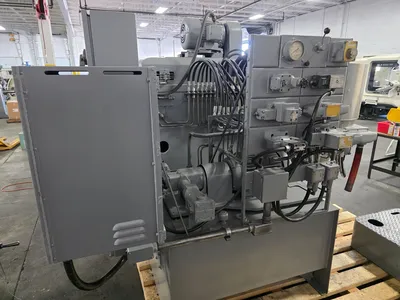

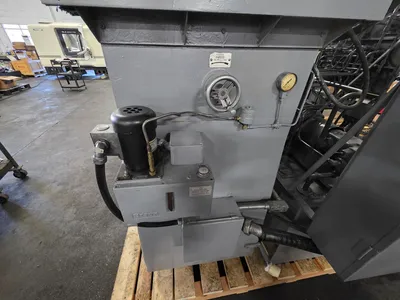

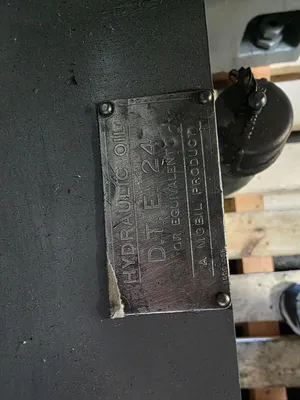

Hydraulic pump: 77" x 44" x 73" 1500 lbs

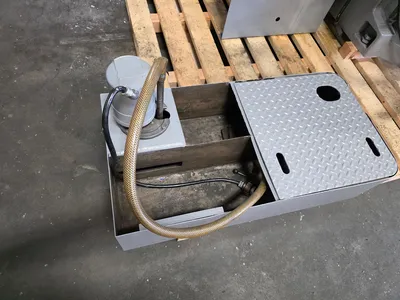

Coolant Tank: 48" x 25" x 12" 500 lbs
