12" x 0.093" DYNAMIC FEEDS INC. "DX1212" SERVO-FEED SYSTEM w/CONTROL CONSOLE
Have one to sell?
$2,450.00 USD
ConditionUsed
1 available

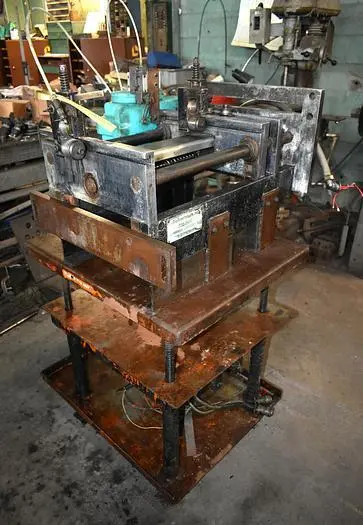

12" x 0.093" DYNAMIC FEEDS INC SERVO FEED SYSTEM
Serial No 301T92-1, Model DX1212
CATALOG SPECIFICATIONS;
Material Width, Maximum 12" 304 MM
Material Width, Minimum 0.5" 12.7 MM
Feed Length Maximum, One Stroke 12" 304 MM
Feed Length Minimum 0.001" 0.025 MM
Thickness Capacity, Full Width .093" 2.36 MM
NOTE: Servo Feeders Can Be Used In Stamping Operations
For Feeding Presses Where Precise Control Over Feed Length And
Speed Is Crucial. They Can Also Be Used In Progressive Die Operations
And High-Speed Production Lines.
F.O.B. OUR WAREHOUSE
EQUIPPED WITH:
Control Console
Stand w/Height Adjustment
LSP "D152-C" Lubricator
