AUTOMEC CNC 600 HD w/G24 BACKGUAGE, 15” TOUCH SCREEN, new 2022

AUTOMEC CNC 600 HD w/G24 BACKGUAGE, 15” TOUCH SCREEN, new 11/2022
SYSTEM:
• CNC 600HD Autogauge (New $16,410.00)
• Category 1 Ram Axis for Cincinnati CB (New $5,785.00)

ADDITIONAL OPTIONS:
DP-4 Pendant Mount Assembly (Paid Extra $475)
Extra Pair GF-8 Finger Assembly (Paid Extra $685)
** Extra Length Linear Scale (24” travel) for Cat 1 Ram Axis (Paid Extra $560)

NOTES
AC Power Requirements: Automec gauging systems require 105 to 125VAC, 60HZ at 7 AMPS on an isolated line. If this power is not available a 2.0 KVA step down transformer should be used. Do NOT use press brake control transformer. Supplying this power to the system is the end user responsibility.

CNC 600 CONTROL SPECIFICATIONS
• Ram display can show true ram position in Depth
• All ram dimensions can be offset
• All Backgauge dimensions can be offset
• Virtually unlimited job storage
• 15” Touch Screen
• Depth Mode & Angle Mode
• Tool Library
• Programmable Delay/Retract between Bends (0 - 19 sec.)
• Bend Allowance
• Calculator to Change Dimensions Incrementally
• USB Support
• Back gauge Reversal on Pinch Point (time and distance)
• Parts Counter
• Import photos of your setup

G24 MODEL HD MECHANICAL SPECIFICATIONS
Holding Force: 400 LBS.
Gauge Travel: 24”
# of Drives: 2
Repeatability: ± .002”
Weight: 350 LBS.
Vertical Hgt. Adj.: 10”
Overall Height: 26”
Recommended Width: 9’ to 14’
Overall Depth: 42”

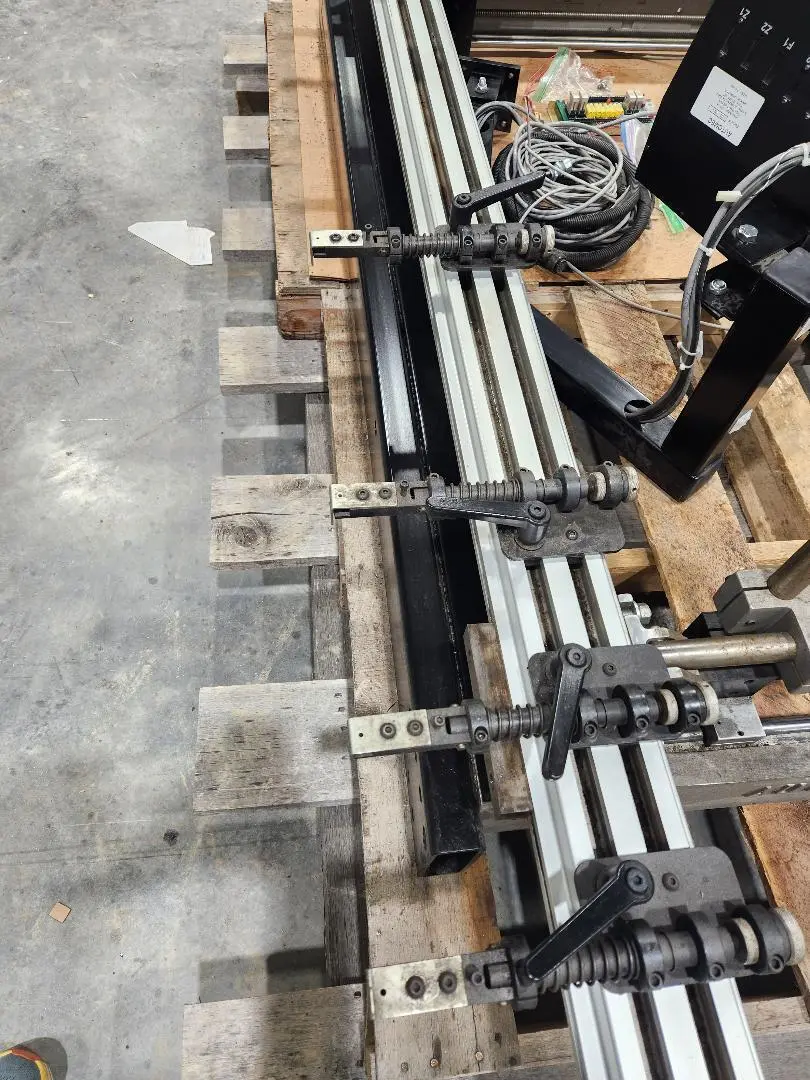

Finger Type: (2) GF-8 w/Extra Pair
Overall Width: 77’
Work Blocks: Yes
Gauge Bar Length: 11’
Reference Bars: Yes
Positioning Speed: 600 IPM
