75 TON MINSTER "DIE-NAMIC 7" OBI FLYWHEEL PRESS w/VARI-SPEED DRIVE
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available

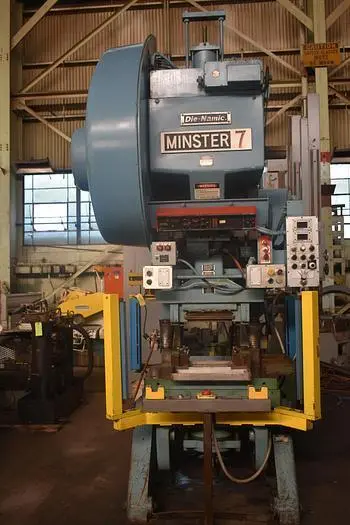

75 Ton MINSTER "DIE-NAMIC" OBI PRESS
Serial No. 7D-SS-26447, Model 7, Series DIE-NAMIC
CATALOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 4"
Shut Height to Bed, (SDAU) 21"
Shut Height to Bolster, (SDAU) 18"
Power Slide Adjustment 3.5"
Bed Area, L-R x F-B 36" x 24"
Bolster Area, L-R x F-B 36" x 24"
Ram Area, L-R x F-B 24" x 16"
Stokes Per Minute, Variable 90 to 180 SPM
Variable Drive Motor, HP/RPM 15 HP/50 -1750 RPM
Electrical System 230-460/3/10
Weight, Approximately 19000 LBS
F.O.B. OUR CINCINNATI WAREHOUSE
EQUIPPED WITH:
Air Clutch & Brake
Flywheel Design
15 HP Eaton "Dynamatic" Variable Speed Drive
Die-Namic Die Changing System
7.7 Ton Die Cushion (100 PSI)
Air Counterbalance - Air Blowoff
Recirculating Lubrication System
