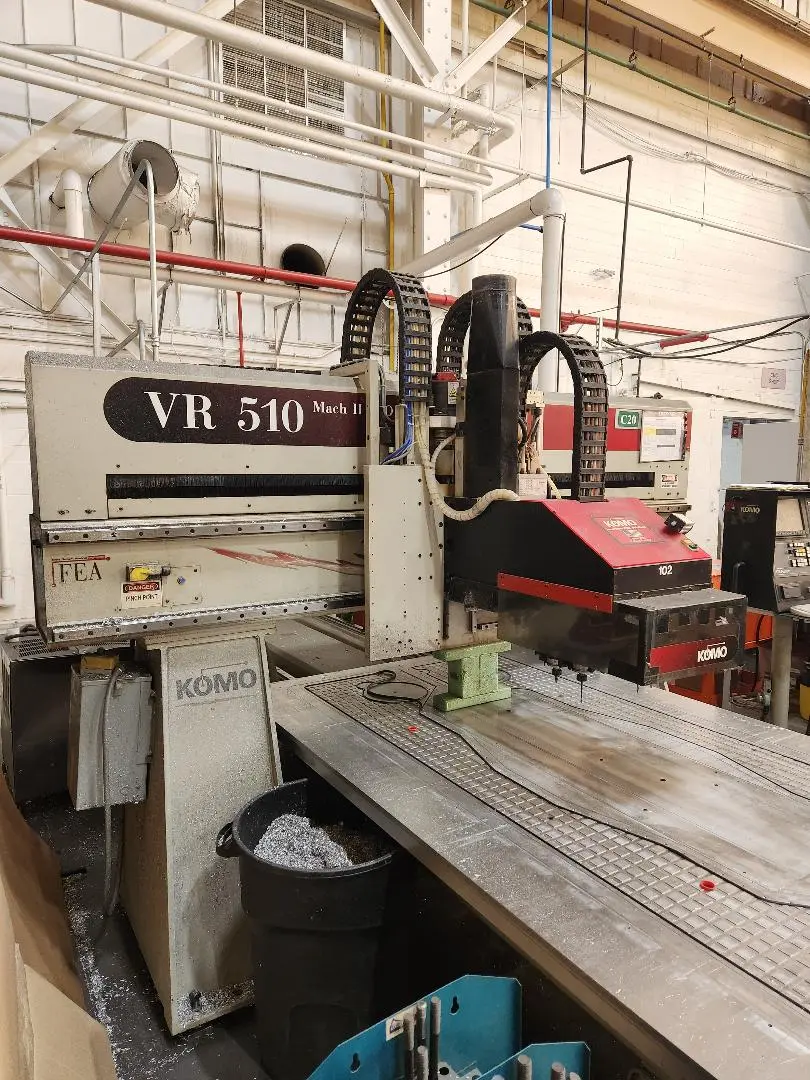

KOMO VR 510 MACH II SHO 5' x 10' CNC ROUTER w/ATC
Model: VR510MACHIISHO
Specifications:
- Table size 60" x 120" x 32" H, with Table thickness 2".
- Travels: X-Axis 135", Y-Axis 84", Z-Axis 11".
- Positioning speed: X & Y-Axis 3,150 IPM & Z-Axis 600 IPM.
-
- Equipped with:
- Moving solid cast-aluminum single-zone vacuum "Matrix" table, with Front-to-back configuration & (4) Pop-up location pins.
- OMLAT "103909" 12 kW (16 HP) - 24,000 RPM HSK-63F Air-cooled electrospindle; Variable spindle speeds to 24,000 RPM.
- Unist Mist System
- Koolant Kooler
- 12-Position Carousel-type automatic tool changer.
-
- Features:
- Boring unit, with (13) Pneumatically-actuated vertical spindles, (8) in X-Axis & (5) in Y-Axis, & (6) Horizontal spindles, (2) (1 + 1) in X-Axis & (1) (1 + 1) in Y-Axis.
- All Axes with THK Precision contour linear guideways, Closed loop AC Servo drives, & Precision ground ball screws.
- Automatic lubrication system.
- Heavy-duty bridge.
- Automated tool length measurement.
- Closed loop counterbalance system.
-
- Operator Control:
- GE/FANUC "210-I" CNC Control, with 10.4" Display, RS-232 Port, Remote pendant control, (3) Axes simultaneous control, Linear & Circular interpolation, Network compatible, Background editing, Self-diagnostics, High speed, High precision machining function, Canned cycles, Absolute & Incremental programming, Inch/metric capability, Cutter & tool length compensation, and Feed rate & Spindle speed override.
Electrics: 480V 3 Phase 60hrz
Dimensions: 266" L x 143" W x 110" H
Weight: 14,000 lbs. (estimate)
