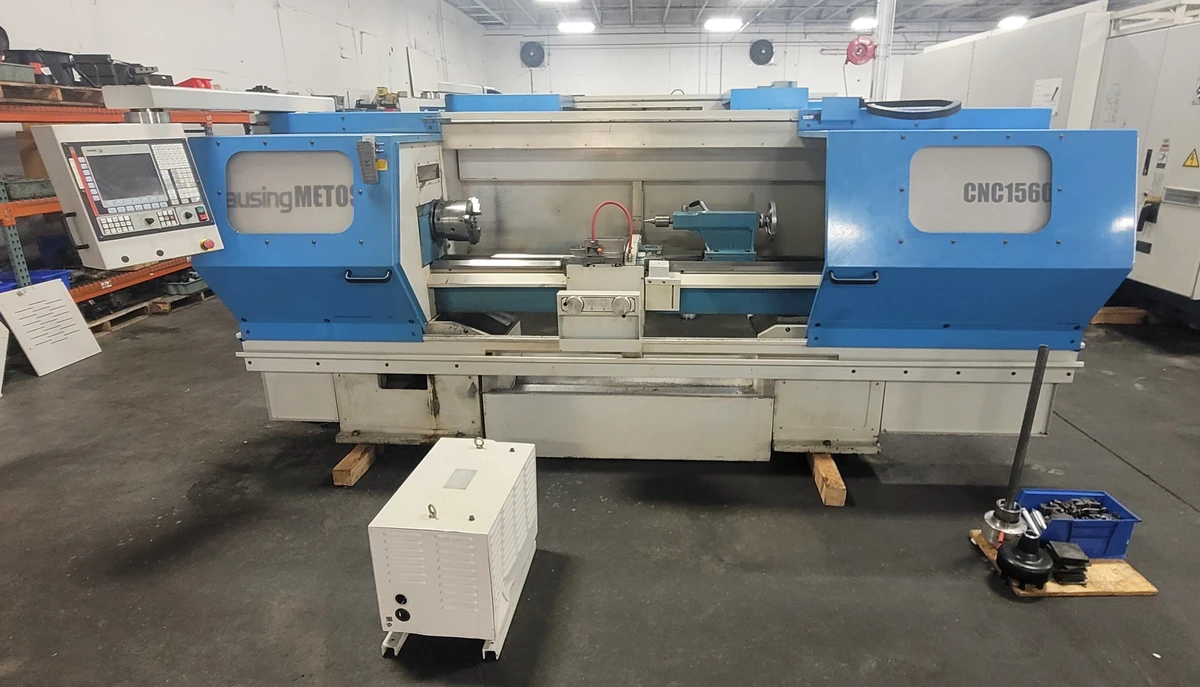

CLAUSING METOSA CNC 1560 FLAT BED CNC LATHE W/FAGOR CONTROLLER
Have one to sell?
$12,950.00 USD
ConditionUsed
1 available
CLAUSING METOSA CNC1560 FLAT BED CNC LATHE,
FAGOR 8055 TC CONTROL,
3000 RPM,
10 HP
# Axis 2
Power: 10 hp 415V 3 phase
Max RPM 3,000 RPM
Swing: 15.75"
Distance over the cross slide: 8.259"
Machining Length: 60"
Spindle bore: 2.598"
Tailstock: Yes
Control CNC: (Fagor 8055 TC)
Maximum feed rate in X-axis: 10 m/min
Maximum feed rate in Z-axis: 10 m/min
10" 3 Jaw Chuck and 4 Jaw Adjustable Chucks included w/extra chuck jaws
5c Collet Closer
All manuals included.
Control installed at Factory.
Transformer
Dimensions: 160" x 64" x 68"
Weight: 5070lbs
