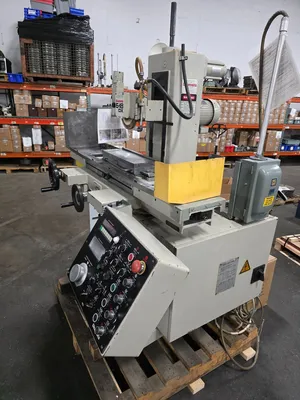

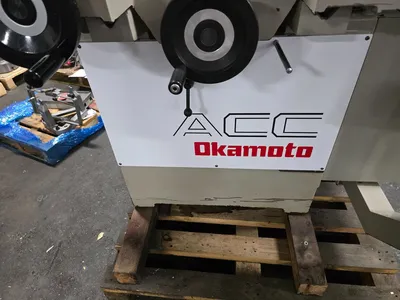

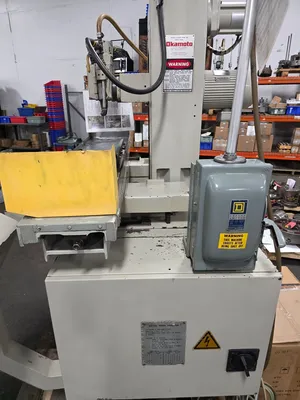

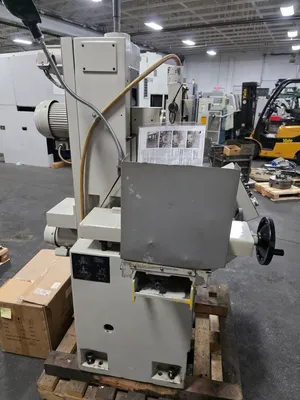

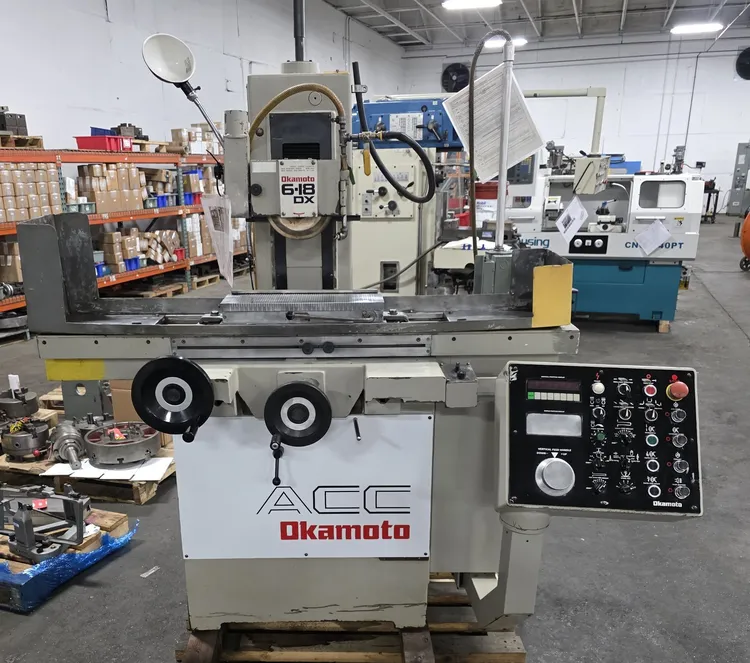

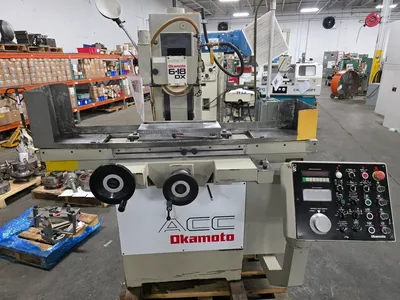

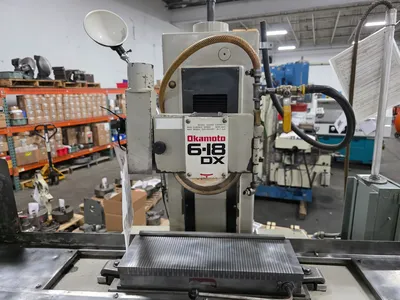

OKAMOTO GRIND-X ACC 6.18 DX3 HYDRAULIC SURFACE GRINDER

OKAMOTO GRIND-X ACC 6.18 DX3 HYDRAULIC SURFACE GRINDER

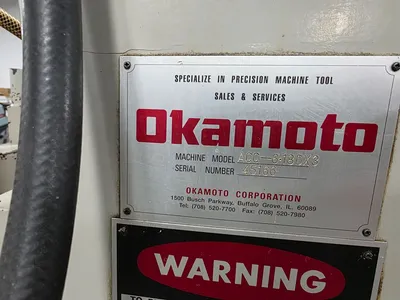

S/n: 45166

Nominal grinding capacity: 6 x 18

Maximum height under 8 wheel: 7

Table speed, infinitely variable: UP TO 82 FPM

Max. longitudinal table movement, manual: 24

Auto cross feed increment: 002 TO 0.40

Auto continuous crossfeed: 4 TO 40 FPM

Crossfeed, manual, hand feed per rev.: 25

Grad. of handwheel: 0004

Fine feed knob for crossfeed, grad: .00002

Max. crossfeed, manual: 7

Auto incremental downfeed increments: 00005 TO .0015

Power rapid wheel positioning rate: 16 IPM

Spindle motor: 2 H.P.

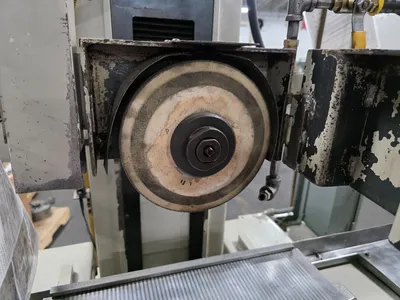

Wheel size: 8DIA. x 1W x 1.25B

Approx. dims. for operation: 85 x 63D x 70H

Approx. machine weight: 2,500 LBS.

Description

6 X 18 OKAMOTO HIGH-PRECISION SURFACE GRINDER

HYDRAULIC AUTO FEEDS,

AUTO IDF

3X AUTO FEEDS,

WITH DX PROGRAMMABLE AUTO INCREMENTAL DOWNFEED

EQUIPPED WITH:

PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:

SERVO DRIVEN DOWNFEED

AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE

OPERATIONS

DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

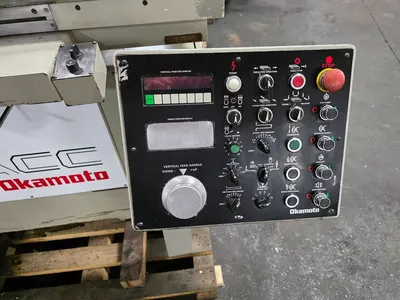

DIGITAL DISPLAY OF VERTICAL AXIS ON THE CONSOLE

SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT

COMPLETION OF GRIND CYCLE

ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT

W/EACH GRAD. EQUIVALENT TO .00001, .0001 OR .001

POWER RAPID WHEEL POSITIONING

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

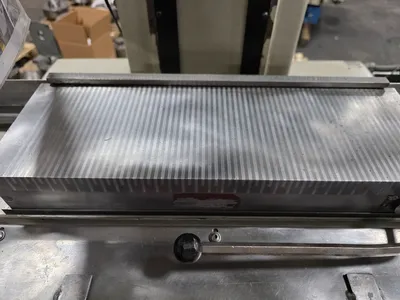

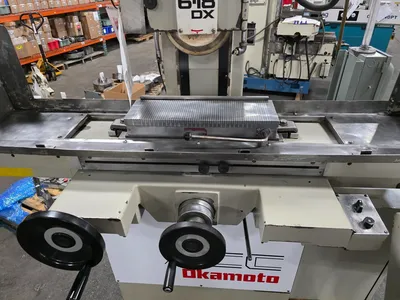

6 X 18 O.S. WALKER MANUAL CHUCK

FINE FEED KNOB FOR CROSSFEED, .00002 GRADUATION

2 H.P./230-460 VOLT SPINDLE MOTOR
