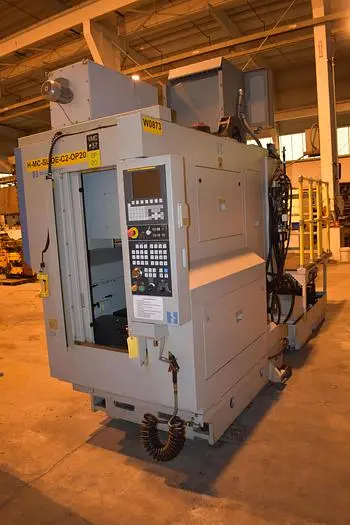

2013 GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER W/RNA-160L TSUDAKOMA NC ROTARY TABLE

GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER

w/RNA-160L TSUDAKOMA NC ROTARY TABLE

New 2013, Serial No GXPB3H0015, Model GX-300

EQUIPPED WITH:

Fanuc OiMD CNC Control

RNA-160L Tsudakoma NC Rotary Table

20-Position Bi-Directional Automatic Tool Changer (Swing-Arm)

Thru-Spindle Coolant - 20 HP Spindle Motor

Losma "Icaras" Mist Filtration System (Model S)

LNS "TURBO 250" High Pressure Thru-Spindle

Coolant System w/Chip Conveyor

CATALOG SPECIFICATIONS:

Table Working Surface, W x L 15.8" x 23.6"

Table Load Capacity 396 LBS

Table Longitudinal Travel (X-Axis) 11.8"

Saddle Cross Travel (Y-Axis) 15.8"

Vertical Travel (Z-Axis) 16.9"

Spindle Taper ct40

Tool Diameter Full Drum, Maximum 3.15"

Tool Diameter Empty Pockets, Maximum 5.9"

Tool Length, Maximum 8.86"

Tool Weight, Maximum 13.2 LBS

Spindle Speeds, Range 0 to 7083 RPM

Positioning Speed Manual Mode, Range 0 to 354 IPM

Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM

Distance Table to Gauge Plane, Range 5.9" to 22.8"

Spindle Motor, Horsepower Rating 20 HP

Machine Dimensions, L x D 57.09" x 100.87"

Machine Height 93.35"

Weight Approximately 11000 LBS

NOTE: These Machines Were Designed With A Very Compact Footprint

In Order To Better Utilize Valuable Floor Space. These Specifications

Make The GX Machines Ideal For The Aerospace, Medical Defense,

3C, Automotive And Other Industries Who Require High-Value, Complex,

Parts From Difficult To Machine Materials.

F.O.B. OUR WAREHOUSE
