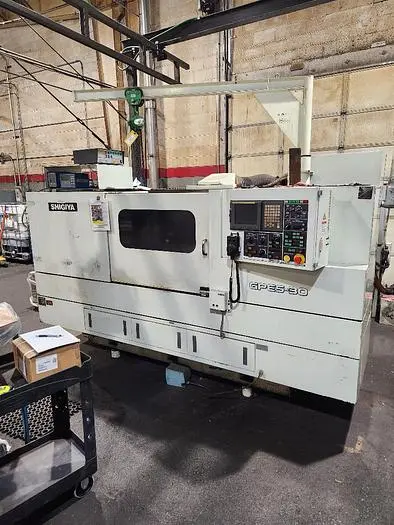

11.81" x 24.81 SHIGIYA "GPES-30-60" CNC ECCENTRIC/POLYGON CYLINDRICAL GRINDER

11.8" x 24.8" SHIGIYA "GPES-30.60" CNC ECCENTRIC/POLYGON CYLINDRICAL GRINDER

New 2004, Serial No 1040331, Model GPES-30-60

EQUIPPED WITH:

Okuma OSP-P100 CNC Control

Marposs Gauging

Built-In Overhead Jib Crane

Coolant System

CATALOG SPECIFICATIONS:

Swing Over Table, Maximum .......... 11.8" 300MM

Grinding Diameter, Maximum .......... 8.7" 220MM

Distance Between Centers, Nominal .......... 24.81" 630MM

Grinding Wheel Diameter .......... 13.78" 350MM

Grinding Wheel Width .......... .98" 25MM

Spindle Motor Horsepower .......... 20 HP 15KW

Weight, Approximately .......... 5500 LBS

NOTE: The GPES-30's New Radius Traverse Function Expands Grinding Capabilities. The GPES-30 CNC Eccentric/Polygon Grinder Provides Both Automatic Roundness On The Eccentric Shaft And Superior Accuracy On Polygon Shapes. It Sculpts The Required Geometry For Diverse Polygonal Workpieces And Custom Polygon Applications Used In The Manufacture Of Hub Connections, Keyways, Gears, Couplings And Splines.

Replacement Price On This Machine Is Over $700,000.00.

F.O.B. ON WAY IN
