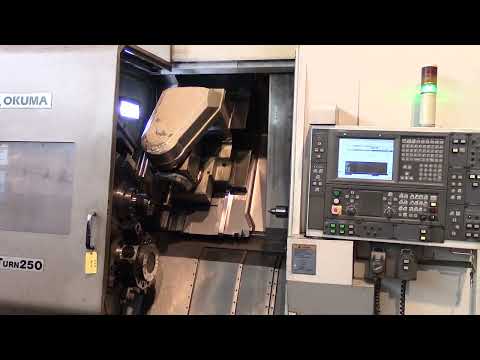

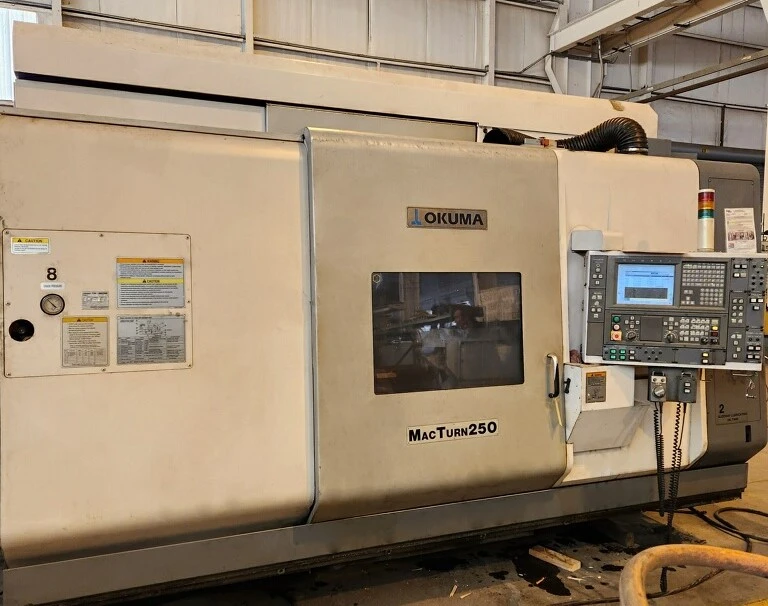

OKUMA "MACTURN 250BB-2S/1000" BIG-BORE 5-AXIS CNC TURNING CENTER WITH LIVE MILLING

OKUMA "MACTURN 250-2S/1000" BIG-BORE 5-AXIS

CNC TURNING CENTER W/LIVE MILLING

New 2005,

Serial No 116135,

Model Macturn 250-2S/1000

EQUIPPED WITH:

OSP-P100L CNC Control w/CRT

30-Position Automatic Tool Changer

5-Axis Machine Design

3.15" Spindle Bore - A2-8 Spindle Nose

Collet-Type Chuck w/Kitagawa Hydraulic Actuator

Renishaw Automatic Gauging w/C-Axis Zero Offset

Countermeasure For Collision Between H1 Turret And Tailstock

Tailstock

Lift-Up Chip Conveyor

CATALOG SPECIFICATIONS:

Spindle Bore Diameter 3.15"

Bar Diameter Capacity 2.75"

Swing Over Bed, Maximum 21.65"

Swing Over Saddle 20.87"

Work Diameter, Maximum 21.65"

Work Length, Maximum 39.37"

X-Axis Travel, XA Turret 18.70"

X-Axis Travel, XB Turret 6.30"

Z-Axis Travel, ZA Turret 40.06"

Z-Axis Travel, ZB Turret 45.47"

Y-Axis Range 160 (+80 to -80)

Y-Axis Range 6.30 (+3.15 to -3.15)

C-Axis Rotation, Range 360-DEGREES

C-Axis Rotary Control Angle 0.001-DEGREES

B-Axis Angle 210-DEGREES

B-Axis Indexing 1-DEGREE

Main Spindle Speeds, Range to 5000 RPM

Milling Spindle Speeds, Range to 6000 RPM

Tailstock Quill Diameter 3.54"

Tailstock Bore Taper 5 MT

Tailstock Quill Travel 5.91"

Main Spindle Horsepower 30/20 HP

Milling Spindle Horsepower 15/10/7.5 HP

Overall Dimensions, L x W 170" x 100"

Overall Height 114"

Weight Approximately 25300 LBS

Cost over $410,000 new

F.O.B. OUR WAREHOUSE
