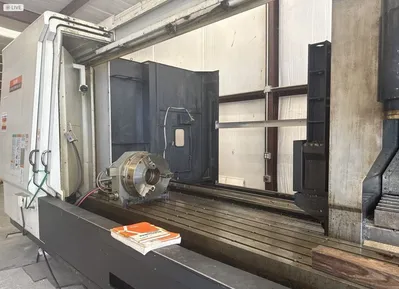

Mazak SVC 2000L/200 II Vertical Machining Center w/16″ 3-Jaw Chuck w/ 6″ Hole 4th Axis Rotary Table

Mazak SVC 2000L/200 II Vertical Machining Center w/16″ 3-Jaw Chuck w/ 6″ Hole 4th Axis Rotary Table

New 2009

- Table size:……………………………. 212.6″ × 20.08″
- Maximum table load:……………….5,291 lbs
- X-axis travel:…………………………..200″
- Y-axis travel:…………………………..20.08″
- Z-axis travel:…………………………..20.08″
- Spindle speed:………………………… 50~15,000 RPM
- Gear range:…………………………… 1 – Stepless
- Spindle motor:…………………………30 HP
- Spindle taper:…………………………..CAT 40
- Tool magazine capacity:…………….30 Station Tool Changer
- Machine dimensions lxwxh:……………….411.81″× 174.53″ x 112.99″
- Machine weight:………………………………57320 lbs.

EQUIPPED WITH:

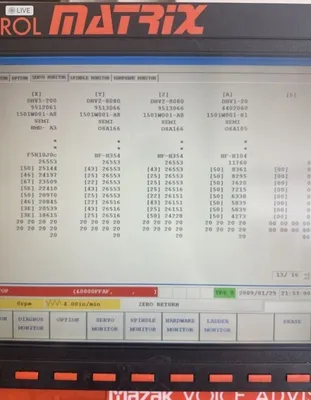

- Mazatrol Matrix
- 16″ 3-Jaw Chuck with 6″ Hole
- 4th Axis Rotary Table

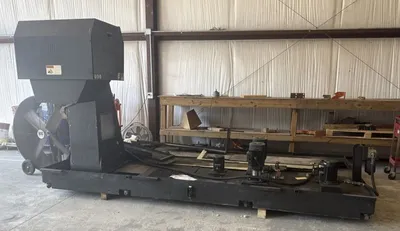

- Chip Conveyor
- EIA
- Spiral
- EIA 3D Comp
- Rotation
- Geometric
- Scaling
- Ext-Data I/O
- Shape Comp
- Thread
- Inverse Time
- Auto TLM
- Polar Coordinates Input
- Comparison Stop
- G 54.1
- Sync Mill Tapping
- Inch/MM Convert
- Scale Feedback
- Variable 600 Sets
- EIA Herical Tap Cycle
- EIA Pattern Cycle
- Tilted Working Plane
- Auto Pecking
- Ethernet Running
