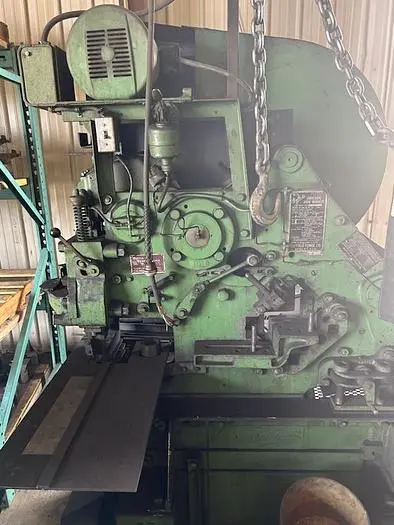

50 TON BUFFALO "1/2 UNIVERSAL" MECHANICAL IRONWORKER 4" x 4" x 1/2"

1/2 BUFFALO "UNIVERSAL" MECHANICAL

IRONWORKER

Serial No. 59Y-3025, Model 1/2, Series Universal

EQUIPPED WITH:

Coper and Notcher

CATALOG SPECIFICATIONS:

Tonnage Capacity, Punch End 50 TON

Stroke, Punch End 1-1/8"

Throat Depth 20"

Shear Blade Length 10"

Punching Capacity Thru 5/8" Plate 1-1/16"

Punching Capacity Thru 3/4" Plate 13/16"

Shearing Capacity, Flats 6" x 5/8"

Shearing Capacity, Round Bars 1-5/8"

Shearing Capacity, Square Bars 1-1/2"

Shearing Capacity, 90 Degree Angles 4" x 4" x 1/2"

Shearing Capacity, 45 Degree Angles 3" x 3" x 5/16"

Shearing Capacity, Tees 4" x 4" x 7/16"

Coping Capacity, Plates 3/8"

Coping Capacity, Angles & Tees 3" x 3/8"

Notching Capacity, Angles & Tees 3" x 3/8"

Strokes Per Minute 44 SPM

Motor, Horsepower/RPM 3 HP/1455 RPM

Electrical System 220-440

Overall Dimensions, L x W 5' x 2'10"

Overall Height 7'

Weight, Approximately 3500 LBS.

F.O.B. ON WAY IN
