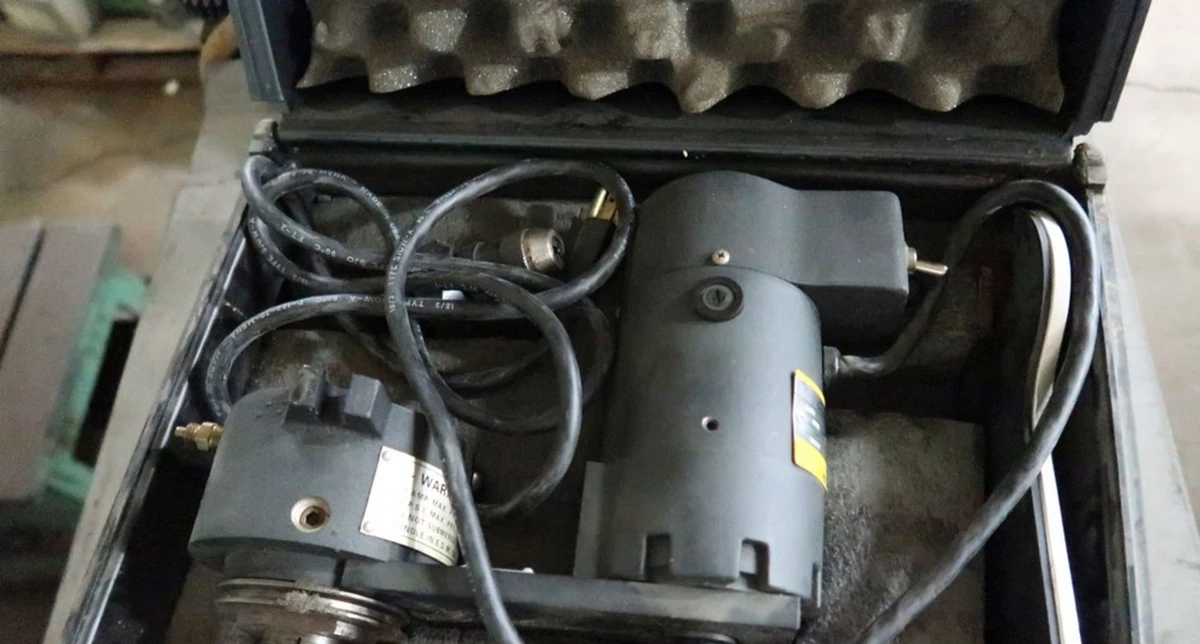

Harig Roto Spindle E-20 - 175-100

Harig's economical EDM spindle mounts to conventional EDM machines to increase productivity. The Roto-Spindle spins your electrode to improve accuracy, decrease electrode wear, and increase hole-making speed up to 50%.

The E-20 Roto-Spindle (P/N 175-100) holds 20mm tooling. Motor has built-in variable speed control for ideal operation between 10-260 RPM. When looking to improve burning times and accuracy on conventional EDM machines, the Roto-Spindle will do the job economically and efficiently. Reliability backed by Harig's trademark service.

Features:

- E-20 Roto-Spindle uses 20mm tooling
- Compatible with the Harig Flush Chucks used for holding smaller electrodes
- Adapts to all vertical ram conventional EDM machines
- Increases cutting rate up to 50%. Improves finish and electrode wear
- Allows excellent flushing for efficient operation
- Improves concentricity and allows operator to work with "tenths"
- Variable speed motor operates on 110V from 10-260 RPM
- Spindle housing is insulated from motor
- Current through spindle 10 amp max
- Compact, lightweight, and easy to use
- Full repair service and replacement parts available

Specifications:

Spindle run-out: 0.0001"

Motor: Baldor 1/15 horsepower

110V AC

Variable speed: 10-260 rpm

Weight: 9 lbs

Flushport: 1/8 -27 NPT
