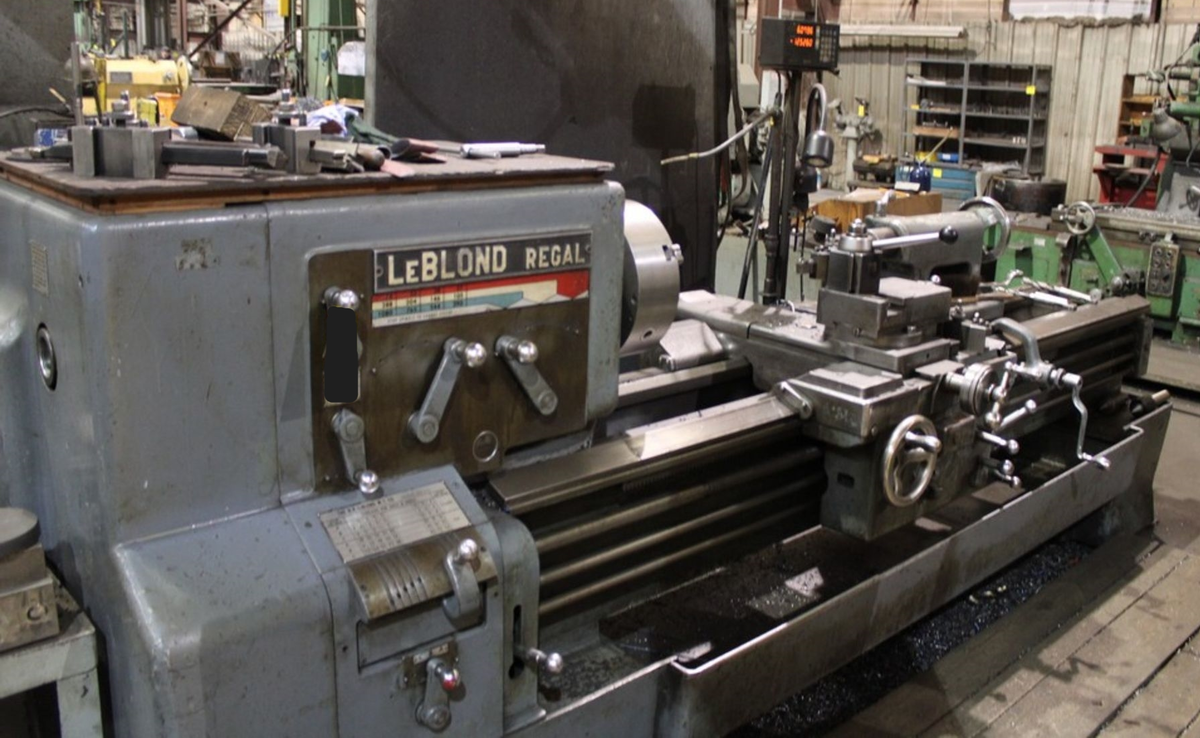

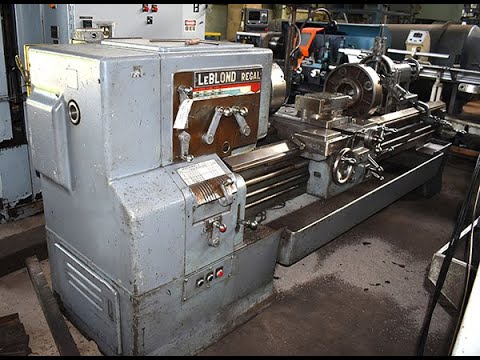

21/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS

21"/22.25" x 72" LEBLOND "REGAL" ENGINE LATHE w/DIGITAL READOUTS

Serial No 2F637, Model F21, Series "REGAL"

EQUIPPED WITH:

Digital Readouts

12" 3-Jaw Chuck w/Jaws

Flame Hardened Bed Ways - (2) Steady Rests

Quick Change Gear Box and Threading Dial

Full Length Coolant-Chip Pan

CATALOG SPECIFICATIONS:

Hole Thru Spindle 2.1875"

Swing Over Bed Ways, Rated 21"

Swing Over Bed Ways, Actual 22.25"

Swing Over Cross-Slide 14.25"

Distance Between Centers 72"

Cross-Slide Cross-Feed Travel 13.25"

Tailstock, Spindle Diameter 3.125"

Tailstock, Spindle Travel 7.5"

(12) Spindle Speeds, Range 27 to 1080 RPM

(56) Carriage Longitudinal Feeds .0036 to .205 IPR

(56) Thread Changes, Range 2 to 112 TPI

Main Motor, Horsepower/RPM 10 HP/1735 RPM

Electrical System 220-440/3/60
