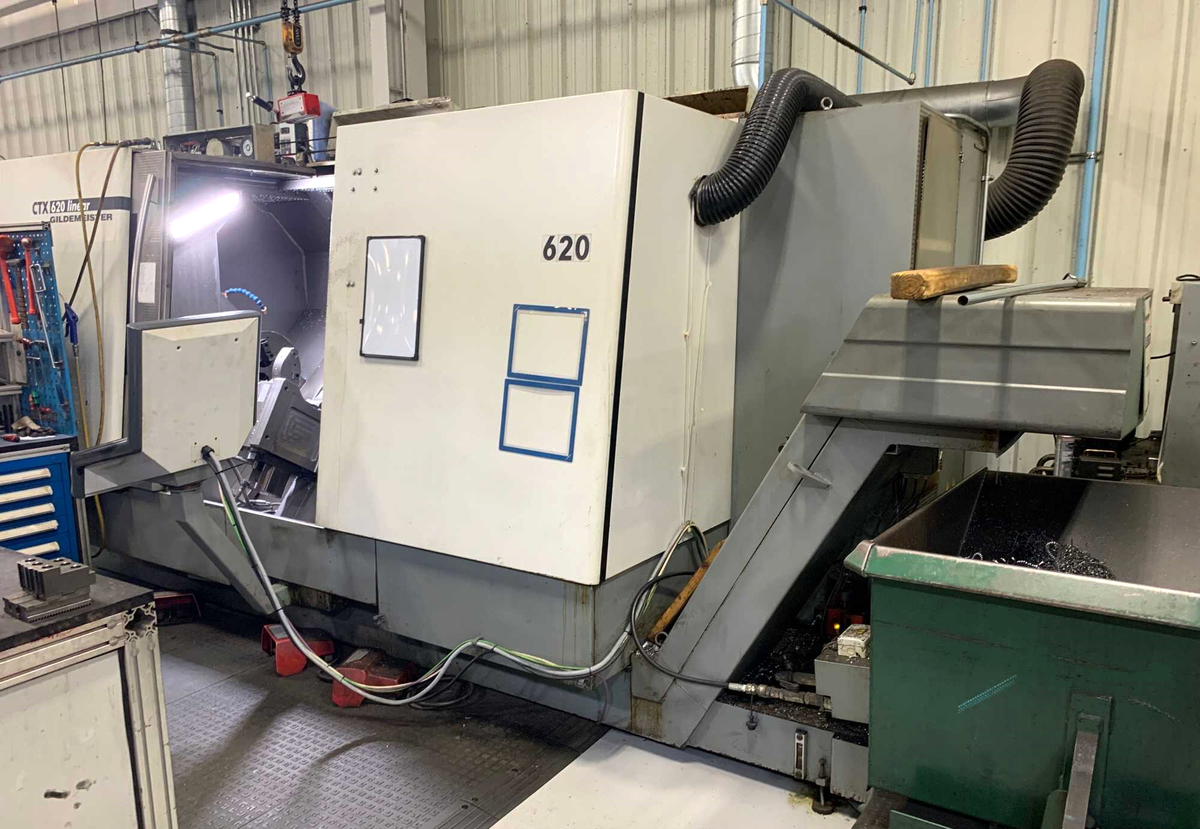

CTX620 x 1000 DMG GILDEMEISTER CNC TURNING CENTER w/Y-AXIS & LIVE MILLING

CTX620X1000 DMG GILDEMEISTER CNC TURNING CENTER

W/Y-AXIS & LIVE MILLING

New 2005, Serial No 80409390300, Model CTX620X1000

EQUIPPED WITH:

Siemens 840D CNC Control

12(+4) Position VDI 50 Turret w/Live Milling

Y-Axis - Hydraulic Tailstock - 15" 3-Jaw Chuck w/Jaws

SMW-Autoblok BHD Hydraulic Self-Centering Steady Rest

Automatic Electric Sliding Door

Pedia "TRK 30-FF-3" Coolant Filtration System w/Rolling Paper Filtering

ChipBlaster High Pressure Coolant Filtration System w/MistBlaster Mist Collector

BMF "SPE 63/30-376 Z60" Heavy-Duty Chip Conveyor

Fargo "DA93XN1/K4/FE" Electrical Transformer

Some Assorted Tool Holders

CATALOG SPECIFICATIONS:

Spindle Hole Diameter 5.3"

Bar Capacity, Maximum 4.75"

Swing Diameter, Maximum 31.5"

Swing Over Saddle, Maximum 19.68"

Turning Diameter, Maximum 23.6/19.6"

Turning Length, Maximum 42.52"

Transverse Stroke 15.06"

Longitudinal Stroke 43.21"

Y-Axis Stroke 2.55"

Spindle Speed, Range 20 to 2500 RPM

Motorized Tool Speed, Range 1 to 3500 RPM

C-Axis Speed, Range 0 to 100 MIN-1

X, Z-Axis Rapid Travers 1771 IPM

YAxis Rapid Traverse 32.8 IPM

Tailstock Stroke, Automatic 43.31"

Tailstock Quill Diameter 4.72"

Tailstock Quill Shaft 5 MT

Tailstock Quill Travel 5.9"

Main Drive Motor Horsepower 44.2 HP

Dimensions w/Chip Conveyor, L x W x H 205" x 83" x 90"

Weight Approximately 22,000 LBS
