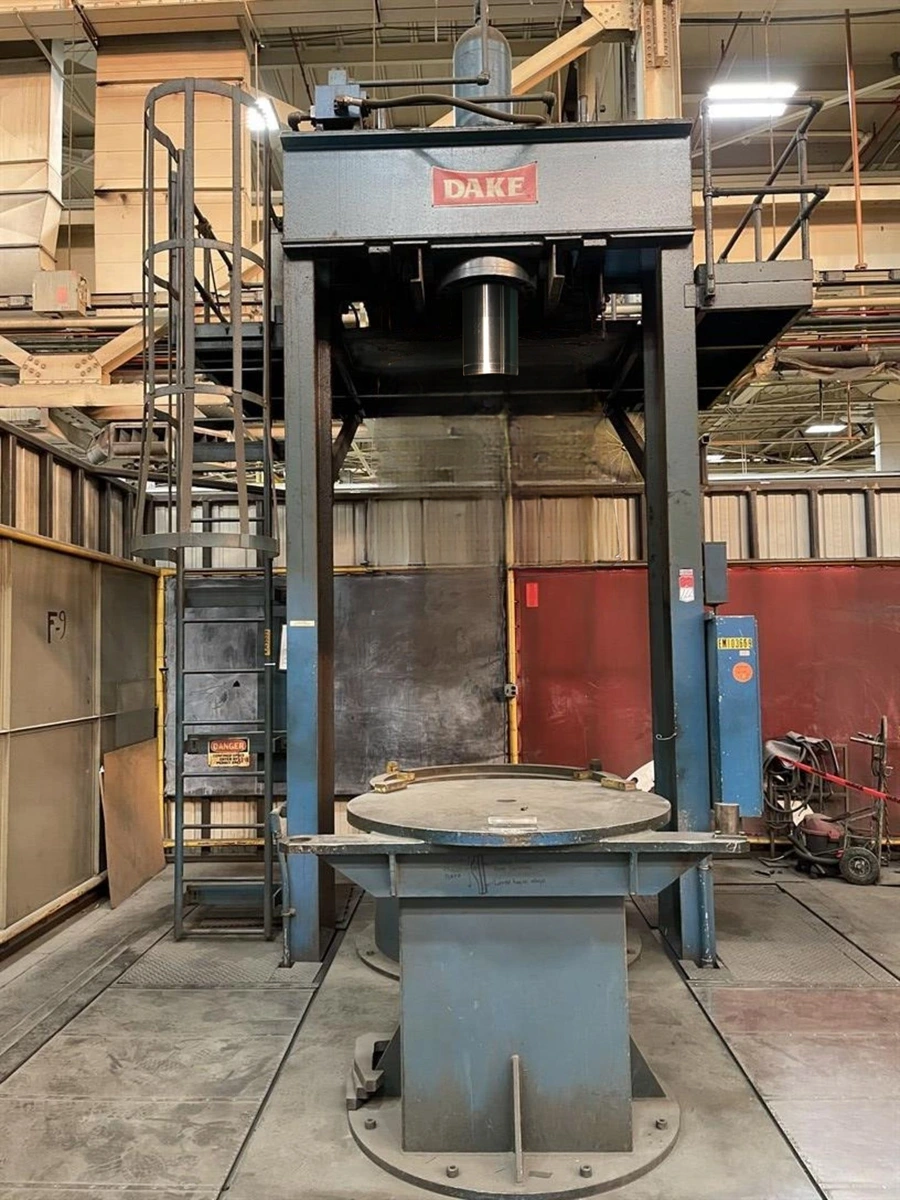

200 TON DAKE “H”-FRAME TRAVELING-HEAD HYDRAULIC STRAIGHTENING PRESS

200 TON DAKE “H”-FRAME TRAVELING-HEAD
HYDRAULIC STRAIGHTENING PRESS
Serial No 190373, Model 19-525,
EQUIPPED WITH:
Slow Down, Fast Raise, Frame Forward, Slow Raise,
Lock Frame, Frame Reverse, Unlock Frame, Fast Down,
Slow Down, Start, Stop.
Hydraulic Gauge
Bell Housing & Work Support Table (Removeable)

The 200 ton Traveling Column H-frame press has rails that can be mounted on the surface of a concrete floor or sub-floor and its has 150" of travel.
CATALOG SPECIFICATIONS:
Tonnage Capacity
200 TON
Stroke Length, Maximum
40″
Daylight to Ram, Maximum
130″
Daylight to Ram, Minimum
90″

If You don't need the 130" max daylight or minimum 90", the frame of the press can always be cut down.
Distance Between Housings
78″
Ram Speed, Pressing
8 IPM
Ram Speed, Advance
115 IPM
Ram Speed, Return
300 IPM
Ram Speed, Breakaway
20 IPM
Head Travel, Speed
28 FPM
Motor Horsepower
25 HP
Electrical System
460/3/60
As Taken from Service.

Sold in 1996 for $310,000
