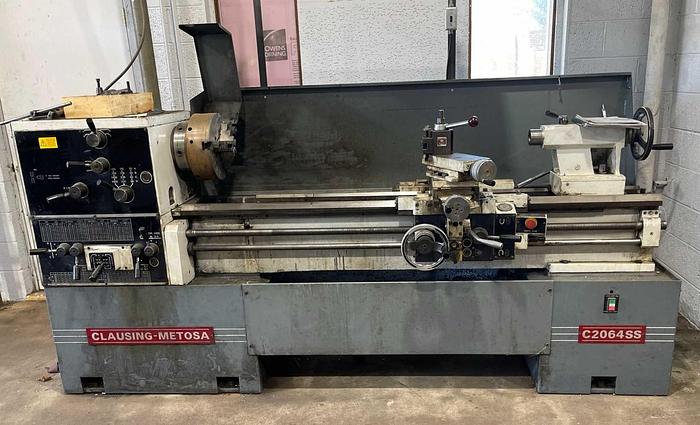

20"/30" x 64" Clausing-Metosa model C2064SS Gap Bed Engine Lathe w/Taper & Inch/Metric Treading

20"/30" x 64" Clausing-Metosa model C2064SS Gap Bed Engine Lathe w/Taper & Inch/Metric Treading

Taper Attachment,

Steady Rest

12" 3 Jaw Chuck

Armstrong Quick Change Toolpost w/Holders

Geared Head with Soft Start and 12 spindle speeds

Manual

Change Gears

Standard Equipment:

•Dual Inch/Metric Dials

•Dead Centers

•Splash Guard

•Micro Carriage Stop

•Steady Rest .4" - 4.5"(10 - 115mm)

•4-Position Bed Stop

•Coolant System

•One-Shot Lubrication

•Drive Plate

•Interlocking Chuck Guard

•Chip Pan

•Thread Dial Indicator

•T-Slotted Top Slide

•Electro-Magnetic Brake

•Chip Guard

Capacity

Swing over bed: 20.87"(530mm)

Center height: 10.24"(260mm)

Swing in gap: 30.71"(780mm)

Gap (in front of face plate): 8.46"(215mm)

Swing over carriage: 18.70"(475mm)

Swing over cross slide: 12.80"(325mm)

Bed width: 13.78"(350mm)

Distance between Centers: 64"

Headstock

Spindle bore: 2.68"(68mm)

Spindle nose: D1-8

Spindle taper: 5MT

No. spindle speeds: (Soft Start)12

Spindle speed (rpm): 30-1500

Thread and feed box

No. of longitudinal feeds: 55

Range: (inches)0.0018-0.0520 (.05-1.5mm)

No. of cross feeds: 55

Range: (inches)0.0005-0.0150 (.025-.75mm)

No. of metric threads: 55

Range: (mm)0.5-15

No. of inch threads: 55

Range: 2-60

No. of modular threads: 55

Range: 0.25-7.5

No. of diametral pitch threads

Range: 4-120

Leadscrew dia./TPI: 1.38"/4

Slide and carriage

Cross slide travel: 13.98"(355mm)

Compound travel: 6.50"(165mm)

Max. tool size: 1" x 1"(25 x 25mm)

Tailstock

Tailstock ram diameter: 2.83"(725mm)

Tailstock ram travel: 7.09"(180mm)

Tailstock taper: 5MT

Motors

Spindle motor 10 Hp(7.5Kw)

Pump motor 3/4 Hp(.06Kw)

Height: 59.7"

Width: 41.3"

Length: 117"

Weight: 5,200lbs.
