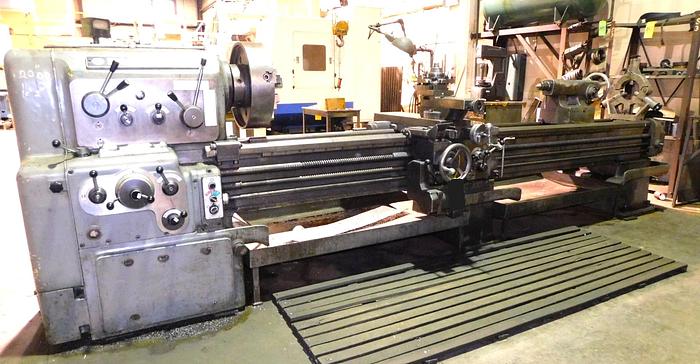

25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION ENGINE LATHE

25" x 120" DAEWOO-IKEGAI HIGH SPEED PRECISION

 ENGINE LATHE W/TAPER ATTACHMENT

Serial No. 040059, Model DA25

EQUIPPED WITH:

Taper Attachment

2.2" Hole Thru Spindle

Inch-Metric Threading Capabilities

Threading Dial - Power Rapid Traverse (4-Way)

4-Jaw Chuck w/Jaws - Hardened & Ground Bed Ways

CATALOG SPECIFICATIONS:

Hole Thru Spindle 2.2"

Swing Over Bed Ways, Rated 25"

Swing Over Bed Ways, Actual 24.4"

Swing Over Carriage 15.5"

Distance Between Centers   120"

(20) Spindle Speeds, Range 25 to 2000 RPM

(44) Longitudinal Feeds, Range .0067 to .0957 IPR

(44) Longitudinal Feeds, Range .17 to 2.43 MM/R

(44) Cross Feeds, Range .06 to .83 MM/R

(44) Cross Feeds, Range .0024 tp .0033IPR

(40) Whitworth Thread Changes, Range 2 to 28 TPI

(55) Metric Thread Changes, Range 1 to 224 MM

(42) Module Thread Change, Range .25 to 56 MM

Lead Screw Pitch 2 THREAD/INCH

Lead Screw Pitch 12 THREAD/MM

Motor Horsepower 15 HP

Electrical System 220-440/3/60

Weight Approximately   10250 LBS

PRICE: F.O.B. OUR WAREHOUSE $24,500.00

DAEWOO IKEGAI LATHE

MODEL# DA25

25" SWING 120" BETWEEN CENTERS, CARRIAGE TAIL STOCK,

STEADY REST,

18" DIAMETER

4-JAW CHUCK

POWER RAPID TRAVERSE

INCH/METRIC THREADING
